Specifications:
Model

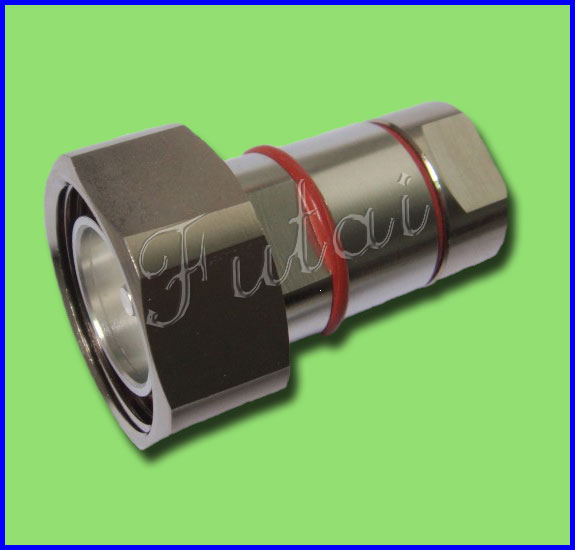

FT-Connector-132
Major Technical Characteristics
Type
7/16-J-132
Impedance
50Ω
Frequency Range
DC~7.5GHz
Center conductor retention force
≥6N
Insulation resistance
≥1000MΩ
Voltage Standing Wave Ratio
Straight ≤1.20/6GHz
Right angle ≤1.35/6GHz
Durability(mating)
≥500(cycles)
Cable
7/8"
Material & Plating
Body
Brass
Silver or cusnzn3 plated
Pin contact
Tin bronze
Gold plated
Socket contact
Beryllium-copper
Resilient contact
Beryllium-copper or tin bronze
Insulator
PTFE
Crimp ferrule
Copper alloy
O-ring sealing
6146 silicone rubber
