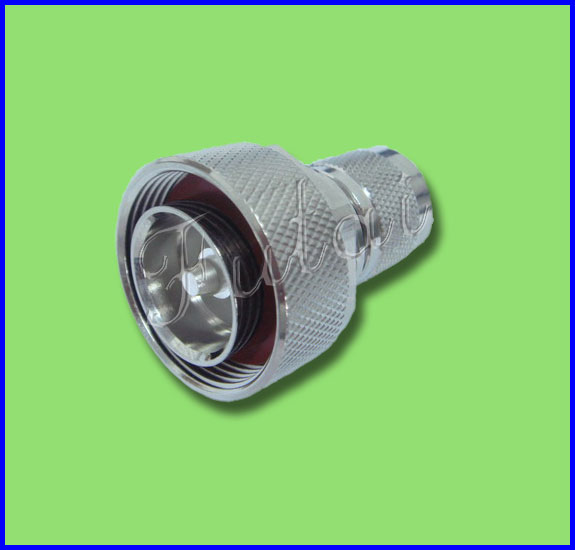

Model

FT-Connector-131

Major Technical Characteristics

Type

7/16-J-131

Impedance

50Ω

Frequency Range

DC～7.5GHz

Center conductor retention force

≥6N

Insulation resistance

≥1000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.20/6GHz

Right angle     ≤1.35/6GHz

Durability(mating)

≥500(cycles)

Cable

 7/8"

Material & Plating

Body

Brass

Silver or cusnzn3 plated

Pin contact

Tin bronze

Gold plated

Socket contact

Beryllium-copper

Gold plated

Resilient contact

Beryllium-copper or tin bronze

Silver or cusnzn3 plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Gold plated

O-ring sealing

6146 silicone rubber
