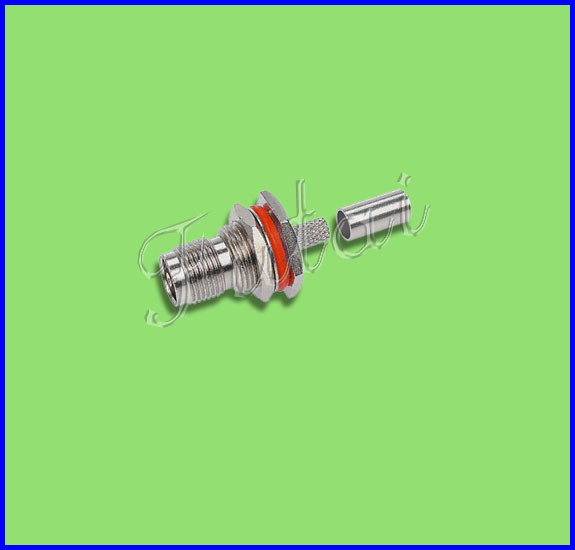

Model

FT-Connector-128

Major Technical Characteristics

Type

TNC-C-KY3-128

Impedance

50Ω

Frequency Range

DC～11GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB

Voltage Standing Wave Ratio

Straight    ≤1.22/3GHz

Right angle  ≤1.30/3GHz

Durability(mating)

≥500(cycles)

Cable

RG58U

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold or silver plated

Socket contact

Beryllium-copper Customized)

Gold or silver plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel plated

O-ring sealing

6146 silicone rubber
