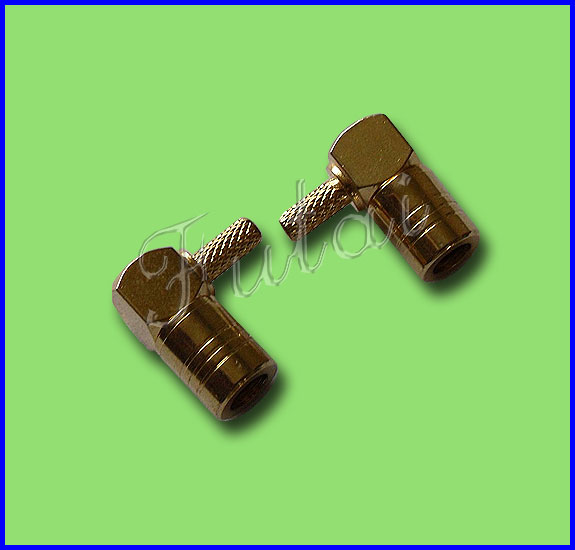

Model

FT-Connector-127

Major Technical Characteristics

Type

SMB-C-KWY1.5-127

Impedance

50Ω

Frequency Range

DC～4GHz

Center conductor retention force

≥0.28 N

Insertion Loss

0.30dB/1.5GHz

Disengagement force

8-63N

Voltage Standing Wave Ratio

Straight       ≤1.35/3GHz

Right angle     ≤1.45/1GHz

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
