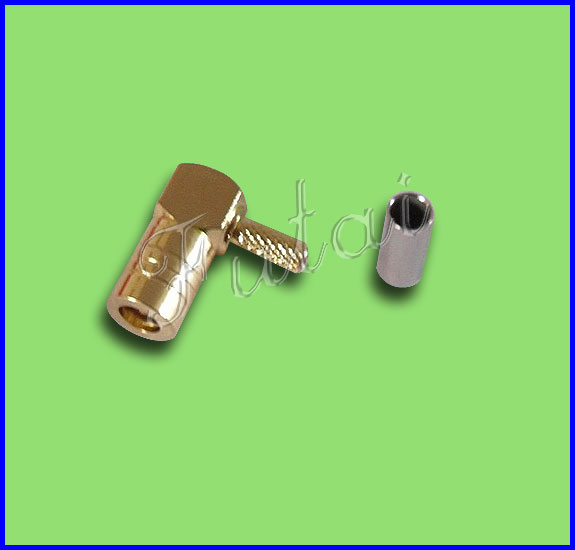

Model

FT-Connector-122

Major Technical Characteristics

Type

SSMB-C-KWY1.5-122

Impedance

50Ω

Frequency Range

DC～3GHz

Center conductor retention force

≥0.16 N

Insulation resistance

≥1000MΩ

Voltage Standing Wave Ratio

≤1.07+0.10f(GHz)

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Gold  plated

Pin contact

Tin bronze

Gold plated

Socket contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
