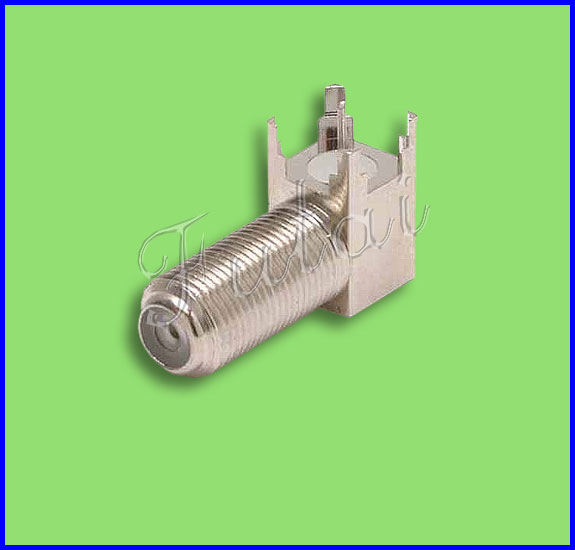

Model

FT-Connector-121

Major Technical Characteristics

Type

F-KWE-121

Impedance

75Ω

Frequency Range

DC～1GHz

Center conductor retention force

≥0.2 N

Insulation resistance

≥1000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.20

Right angle    ≤1.30

Durability(mating)

≥500(cycles)

Cable

PCB

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold or silver plated

Resilient contact

Tin bronze

Gold or silver plated

Insulator

PTFE or PE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
