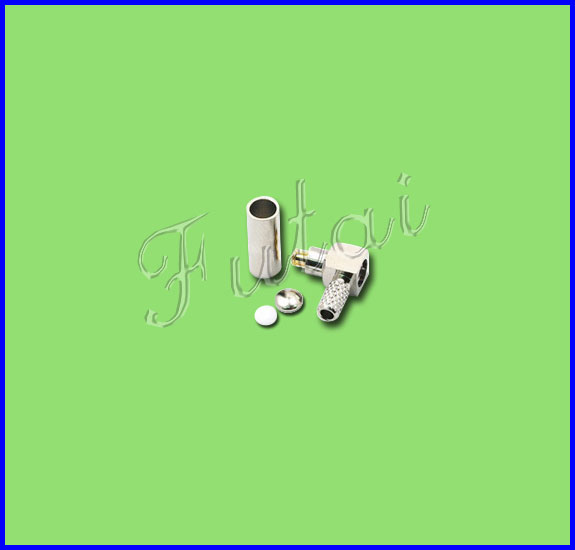

Model

FT-Connector-109

Major Technical Characteristics

Type

MC Card-C-JWY1.5-109

Impedance

50Ω

Frequency Range

0~6GHz

Insulation resistance

≥5000MΩ

Insertion Loss

0.18dB/1GHz

Contact resistance

Center Contact ≤5MΩ

Outer Contact  ≤2.5MΩ

Durability(mating)

≥500(cycles)

Cable

RG174,  LMR100

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
