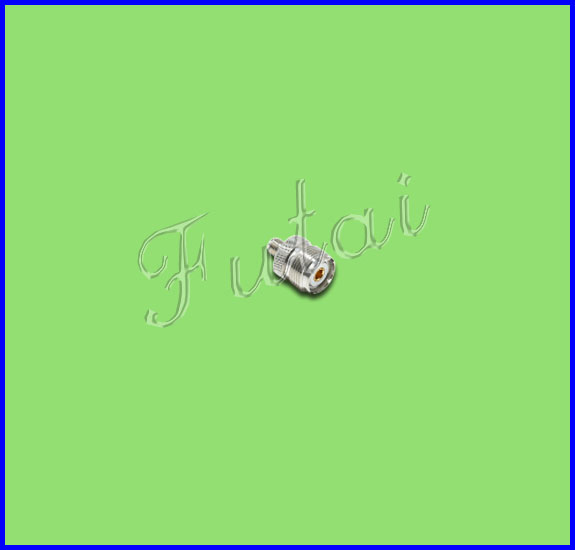

Model

FT-Connector-107

Major Technical Characteristics

Type

SMA-K/UHF-K-107

Impedance

Non-constant

Frequency Range

DC～300MHz

Center conductor retention force

≥1.1 N

Insulation resistance

≥5000MΩ

Contact resistance

Center Contact        ≤5mΩ

Outer  Contact        ≤5mΩ

Durability(mating)

≥500(cycles)

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold or silver plated

Socket contact

Beryllium -copper

Gold or silver plated

Insulator

PTFE or PE

Crimp ferrule

Copper alloy

Nickel plated

O-ring sealing

6146 silicone rubber
