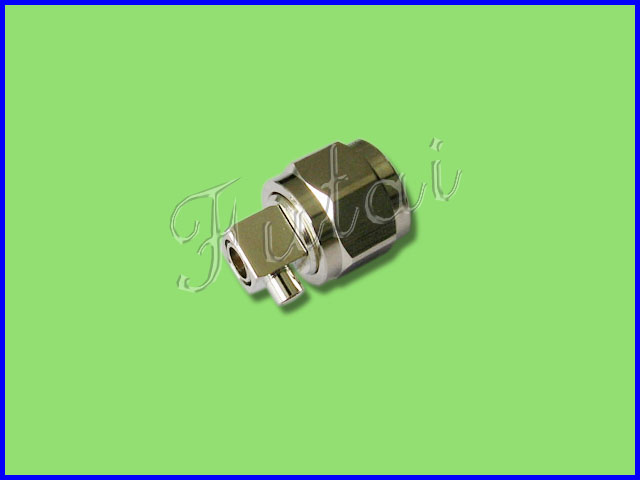

Model

FT-Connector-087

Major Technical Characteristics

Type

N-JWY2-087

Impedance

50Ω

Frequency Range

DC～11GHz

Center conductor retention force

≥0.56N

Insertion Loss

0.24dB（6GHz）

Voltage Standing Wave Ratio

Straight       ≤1.15/6GHz

Right angle     ≤1.25/6GHz

Durability(mating)

≥500(cycles)

Cable

RG405

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Socket contact

Beryllium or tin bronze

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
