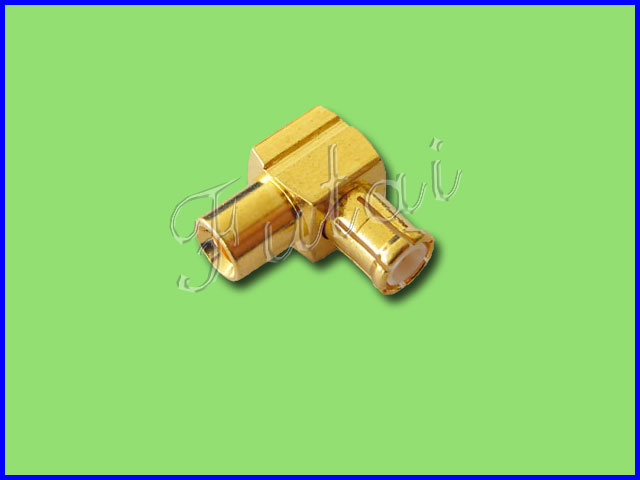

Model

FT-Connector-077

Major Technical Characteristics

Type

MCX-JWY-077

Impedance

50Ω

Frequency Range

DC～6GHz

Center conductor retention force

≥0.28N

Insertion Loss

0.18dB（1GHz）

Voltage Standing Wave Ratio

Straight       ≤1.20/1GHz

Right angle     ≤1.45/1GHz

Durability(mating)

≥500(cycles)

Cable

Semi-rigid Cable RG405

Material & Plating

Body

Brass

Gold  plated

Pin contact

Tin bronze

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Socket contact

Beryllium or tin bronze

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
