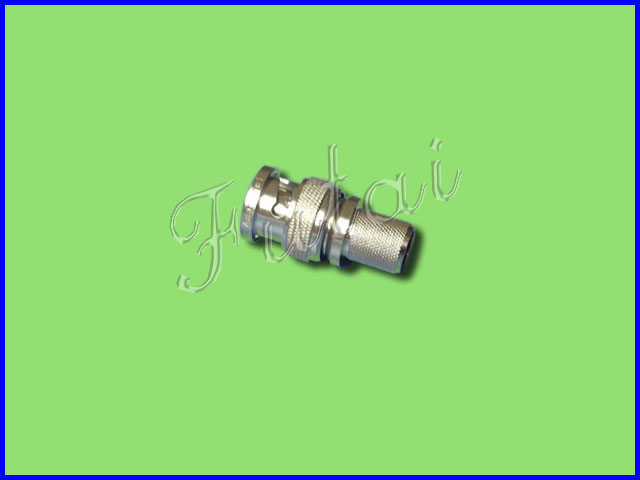

Model

FT-Connector-070

Major Technical Characteristics

Type

BNC-C-JY5--070

Impedance

50Ω

Frequency Range

DC～4GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB/3GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.22/3GHz

Right angle     ≤1.30/3GHz

Durability(mating)

≥500(cycles)

Cable

 RG58U

Material & Plating

Body

Brass

Nickle plated

Pin contact

Brass

Gold or silver plated

Socket contact

Beryllium-copper

Gold or silver plated

Resilient contact

Tin bronze

Gold or silver plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
