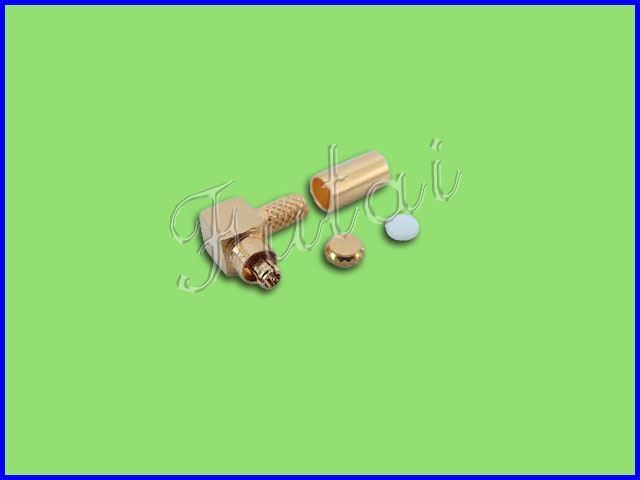

Model

FT-Connector-043

Major Technical Characteristics

Type

MC Card–C-JWY1.5-043

Impedance

50Ω

Frequency Range

0～6GHz

Insulation resistance

≥5000MΩ

Insertion Loss

0.18dB/1GHz

Contact resistance

Center Contact   ≤5m Ω

Outer Contact    ≤2.5mΩ

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
