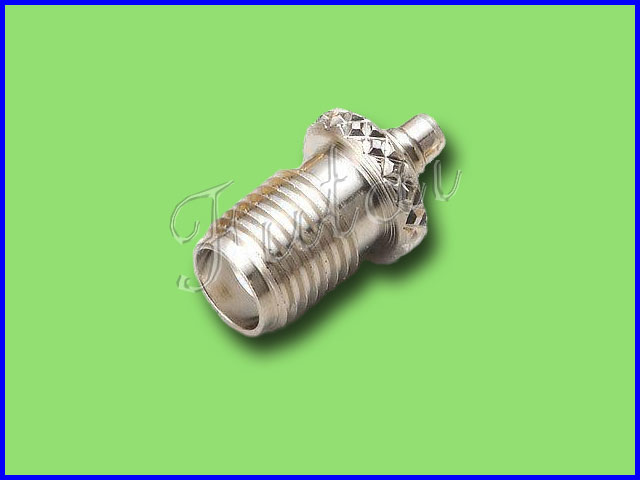

Model

FT-Connector-035

Major Technical Characteristics

Type

MMCX-J/SMA-K-035

Impedance

50Ω

Frequency Range

DC～6GHz

Center conductor retention force

≥0.28 N

Insertion Loss

0.18dB/1GHz

Disengagement force

≥6N

Voltage Standing Wave Ratio

Straight       ≤1.25/3GHz

Right angle     ≤1.43/3GHz

Durability(mating)

≥500(cycles)

Material & Plating

Body

Brass

Gold plated

Inner conductor

Beryllium or Tin bronze

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
