Model

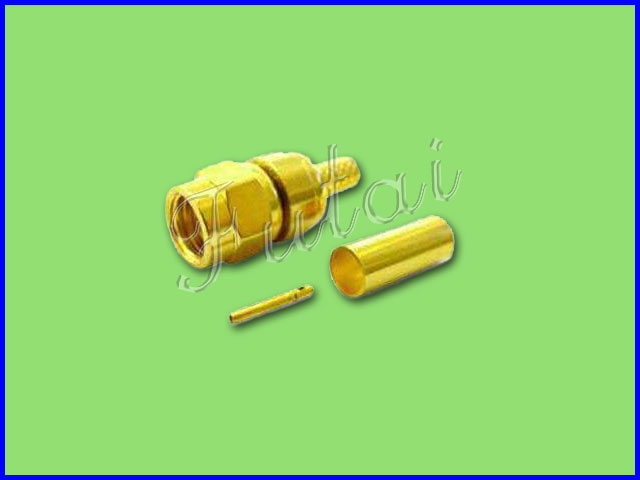

FT-Connector-023

Major Technical Characteristics

Type

SMC-C-KY1.5-023

Impedance

50Ω

Frequency Range

DC～6GHz

Center conductor retention force

≥0.28N

Insertion loss

≤0.24dB/6GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.30/3GHz

Right Angle    ≤1.45/3GHz

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Socket contact

Beryllium or tin brass

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
