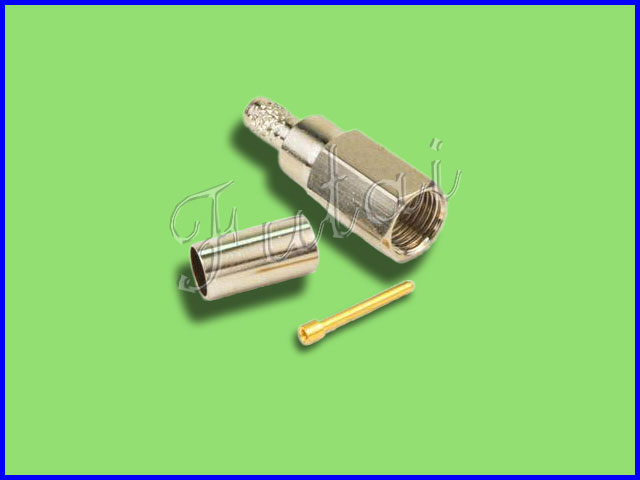

Model

FT-Connector-015

Major Technical Characteristics

Type

FME-C-JY1.5-015

Impedance

50Ω

Frequency Range

DC～3GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB/2GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.20

Right angle     ≤1.25

Durability(mating)

≥500(cycles)

Cable

 RG174,RG316

Material & Plating

Body

Brass

Nickle plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium or tin broze

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated
