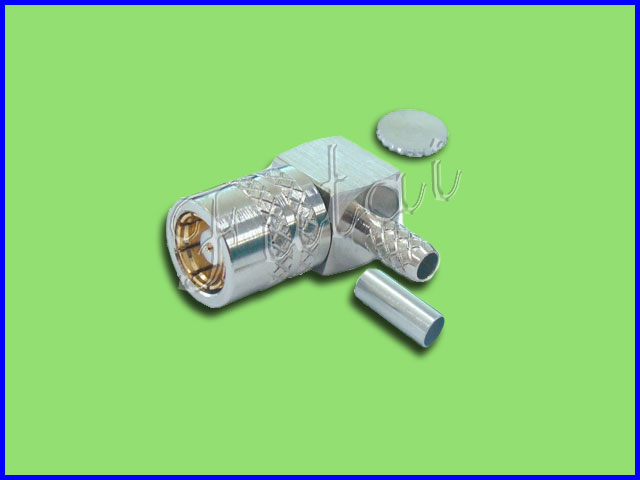

Model

FT-Connector-006

Major Technical Characteristics

Type

SMZ-C-KW1.5-006

Impedance

75Ω

Frequency Range

0～3GHz

Center conductor retention force

≥0.28 N

Insertion Loss

0.15dB

Voltage Standing Wave Ratio

Straight       ≤1.20

Right angle    ≤1.30

Durability(mating)

≥500(cycles)

Cable

RG179

Material & Plating

Body

Brass

Nickel or gold plated

Pin contact

Brass

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Socket contact

Beryllium or tin bronze

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
