Model

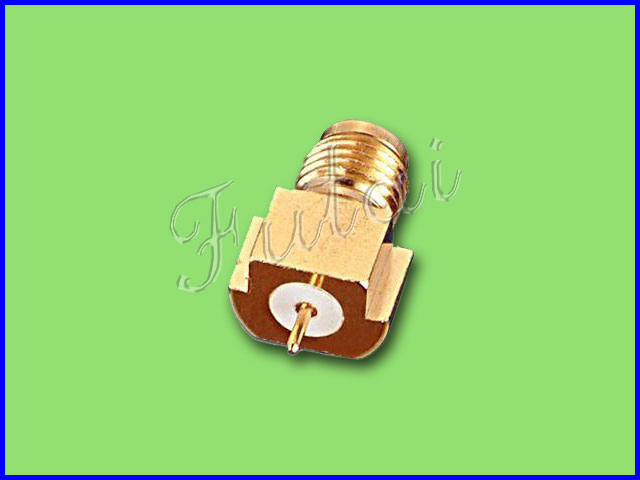

FT-Connector-004

Major Technical Characteristics

Type

SMA-KE-004

Impedance

50Ω

Frequency Range

DC～12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force

≥0.28 N

Insertion Loss

≤0.15dB/6GHz

Voltage Standing Wave Ratio

Straight  Flexible Cable  ≤1.10+0.02f

Semi-Rigid Cable≤1.07+0.018f

Right angle Flexible Cable  ≤1.20+0.03f

          Semi-Rigid Cable≤1.17+0.02f

Durability(mating)

≥500(cycles)

Cable

PCB

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
