Model

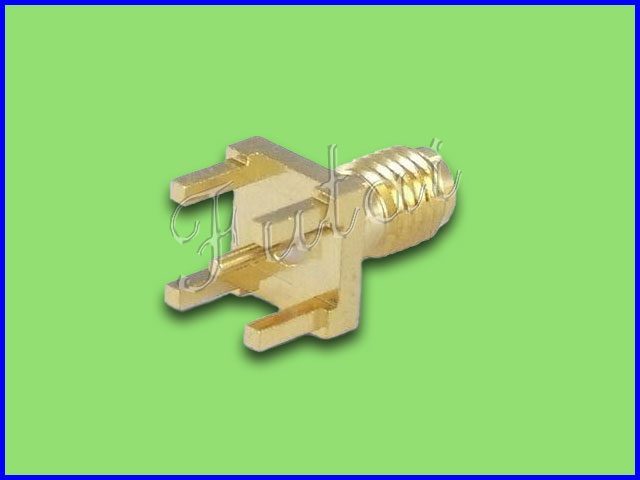

FT-Connector-003

Major Technical Characteristics

Type

SSMA-KE-003

Impedance

50Ω

Frequency Range

DC～35GHz

Center conductor retention force

≥0.26 N

Insulation resistance

≥1000MΩ

Coupling nut retention force

≥100N

Voltage Standing Wave Ratio

≤1.07+0.10f(GHz)

Durability(mating)

≥500(cycles)

Cable

PCB

Material & Plating

Body

Brass

Gold plated

Pin contact

Tin bronze

Gold plated

Socket contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
